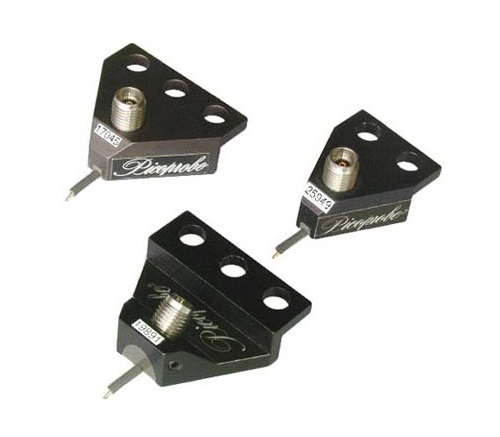

PICOPROBE® MODEL 40A
The GGB Industries, Inc., MODEL 40A microwave probe sets new standards in microwave probing performance. Using low loss coaxial techniques, the Model 40A achieves an insertion loss of less than 0.8 db and a return loss of greater than 18 db through 40 GHz.
Click here for details -

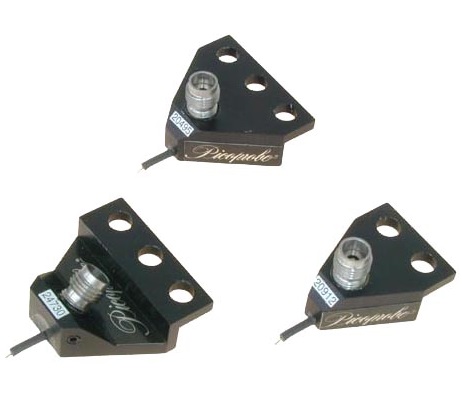

PICOPROBE® MODEL 67A
A coplanar probe with patented flexible tips, the MODEL 67A microwave probe sets new standards in microwave probing performance. Using low loss coaxial techniques, the Model 67A achieves an insertion loss of less than 1.1 db and a return loss of greater than 14 db through 67 GHz.
Click here for details -

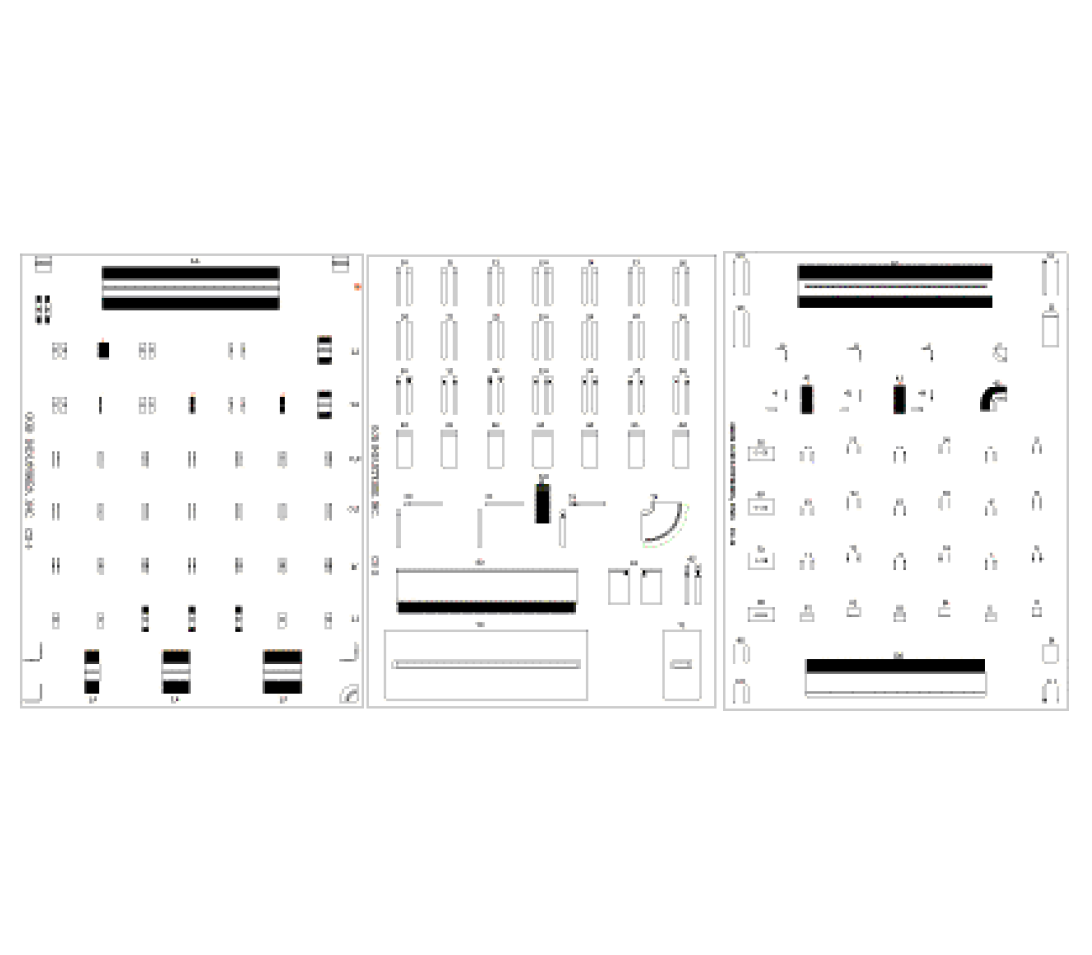

CALIBRATION SUBSTRATE
The GGB Industries, Inc., line of CALIBRATION SUBSTRATES allows the user to calibrate any GGB Industries, Inc., microwave Picoprobe® at the probe tip.
Click here for details -
T-4 SERIES
T-4 tips are for use in most standard commercial micropositioners for probing integrated circuits, pads, or lines. Each T-4 tip uses the same 10, 22, 35, 60, or 125 micron diameter tungsten wire as our Model 12C Picoprobe, but is mounted to a 0.020 inch diameter, 2 inch long tinned copper shaft.
Click here for details
- Page 1 of 1
